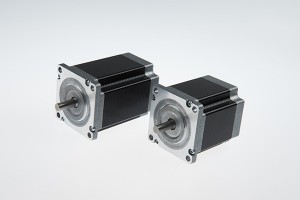

NEMA 24 Stepping Motor(69mm 2.2N.m)

Short Description:

Prostepper offers an extensive range of sizes and configurations from 20 to 110mm and holding torque from 0.1 to 12 N.m routine stepping motors.
Features :

  • Single or Double shaft extension options
  • Connector and Options of wire harness
  • Spur and Planetary gears mounting options
  • Fail safe Brake or Permanent Magnet Brake mounting options
  • Fully customizable per your requirements


  • FOB Price: US $9.9 - 99.99 / Piece
  • Min.Order Quantity: 1 Piece/Pieces
  • Supply Ability: 20000 Piece/Pieces per Month
  • Port: Shanghai, China
  • Payment Terms: T/T, L/C
  • Product Detail

    Product Tags

    Model Current Holding torque Length Specification 3D show
    24H248-02S/D 2.0  1.1  47.4
    24H248-03S/D 3.0  1.1  47.4
    24H248-04S/D 4.0  1.1  47.4
    24H256-02S/D 2.0  1.5 55.8
    24H256-03S/D 3.0  1.5 55.8
    24H256-04S/D 4.0  1.5 55.8
    24H269-03S/D 3.0  2.2 68.3
    24H269-04S/D 4.0  2.2 68.3
    24H269-05S/D 5.0  2.2 68.3
    24H286-03S/D 3.0  3.0  85.3
    24H286-04S/D 4.0  3.0  85.3
    24H286-05S/D 5.0  3.0  85.3
